    Automatic Solar Cell Fiber Cutting Machine | Low-Power Laser Cutter for Solar Panel Production

    Ask Lasest Price
    Brand Name : YOHA
    Model Number : YHC-30
    Certification : CE
    Price : Contact Us
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    • Product Details
    • Company Profile

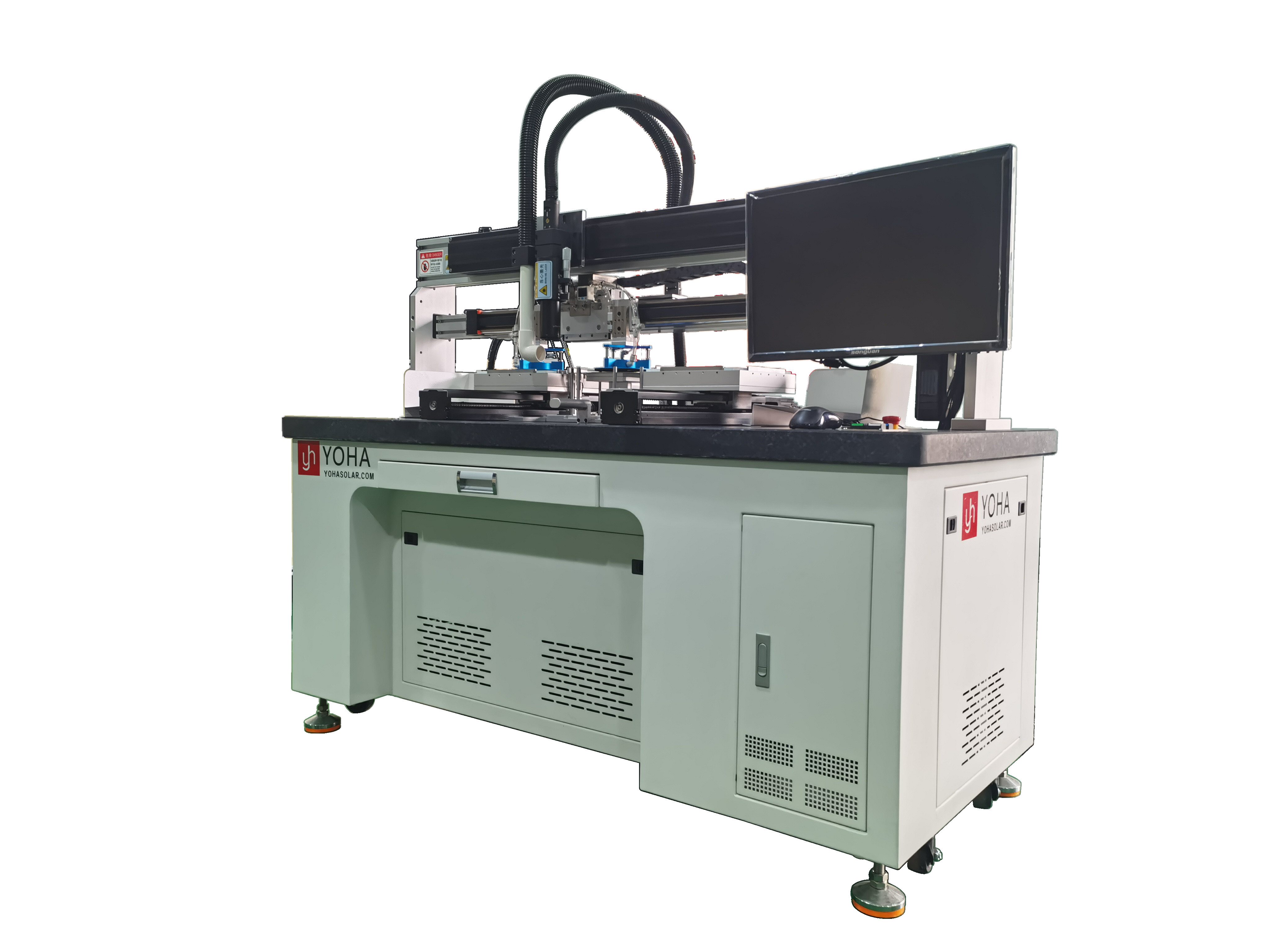

    Automatic Solar Cell Fiber Cutting Machine | Low-Power Laser Cutter for Solar Panel Production

    Automatic Solar Cell Fiber Cutting Machine | Low-Power Laser Cutter for Solar Panel Production

    Technical specifications:


    Application

    The Automatic Solar Cell Fiber Cutting Machine is designed for high-precision cutting and scribing of solar semiconductor silicon wafers, ceramic substrates, and delicate materials. This Laser Cutting Machine ensures minimal surface damage, making it ideal for solar panel production lines and advanced semiconductor manufacturing processes.



    Key Features

    FeatureDescription
    Fiber Laser TechnologyPowered by a 1064nm fiber laser (㎡ <1.3 beam quality) for high-accuracy cutting (≤0.02mm precision).
    Low-Power Laser CutterEnergy-efficient design with ≤1000W consumption and air-cooled operation.
    Automated WorkflowDouble-station scribing structure for seamless integration into solar panel production lines.
    DurabilityMaintenance-free, fully enclosed optical path with ≥100,000-hour service life.
    Compact DesignSpace-saving dimensions (1300×760×1350mm) and user-friendly controls.

    Specifications

    ParameterValue
    Laser Source1064nm Fiber Laser Machine
    Scribing Speed600mm/s
    Cutting Efficiency<1500pcs/h
    Power Consumption≤1000W (Low-Power Operation)
    Electro-Optical Efficiency≥35%
    Compatible Cell Sizes125/156/166/182/210mm (standard & non-standard)

    Technical Parameters

    ParameterSpecification
    Scribing Precision≤0.02mm
    Scribing Width≤0.03mm
    Worktable Stroke700×400mm (glass table)
    Compressed Air0.5–0.8MPa
    Input Voltage220VAC/50Hz

    Environmental Requirements

    RequirementStandard
    WorkspaceClean, dust-free, and air-conditioned.
    Temperature/Humidity5–30°C, <75% humidity.
    Installation ZoneVibration/magnetic interference-free.

    Our Services:

    Automatic Solar Cell Fiber Cutting Machine | Low-Power Laser Cutter for Solar Panel Production

    About Us:
    Automatic Solar Cell Fiber Cutting Machine | Low-Power Laser Cutter for Solar Panel Production

    Yoha Solar is a high-tech enterprise dedicated to the research, development, manufacturing, sales, and after-sales service of serial photoelectric automation equipment.
    15+ Years Engaged In Solar
    300+ Customers Worldwide
    Automatic Solar Cell Fiber Cutting Machine | Low-Power Laser Cutter for Solar Panel Production

    Our company primarily serves the solar photovoltaic industry and holds its own import and export rights. We have developed a range of independent R&D equipment.

    Main Machinery:Fiber Laser Cutting Machine
    Solar cell sorting Machine
    Solar Cell IV tester
    EL defect tester
    EL and AOI Appearance Tester
    Solar Panel Production Line
    Other Auxiliary Machines
