2. Technical Specifications

Camera Model: YH-BXEL
Effective Pixels: 24 million
Resolution: 60004000
Exposure Time: 1–60s
Vignetting Compensation: Yes
Data Transfer: USB 2.0
Distortion Correction: Yes
Sensor Size: 23.515.6 mm
ISO Sensitivity: 100–25600
Processor: EXPEED 4
Physical Resolution (10002000 module): 0.33mm/pixel
Spatial Resolution (10002000 module): Middle/Edge

This Portable EL Tester configuration is ideal for high-precision EL testing, and the use of high resolution cameras ensures every image captured during the inspection process in the Solar Panel Production Line is clear and reliable.

3. Software Features

The software has the following functions to enhance EL testing efficiency:

• Set exposure time and gain.

• Contrast stretching.

• Image cropping.

With support for high resolution cameras, it improves the accuracy of EL data, especially in complex module setups on the Solar Panel Production Line.

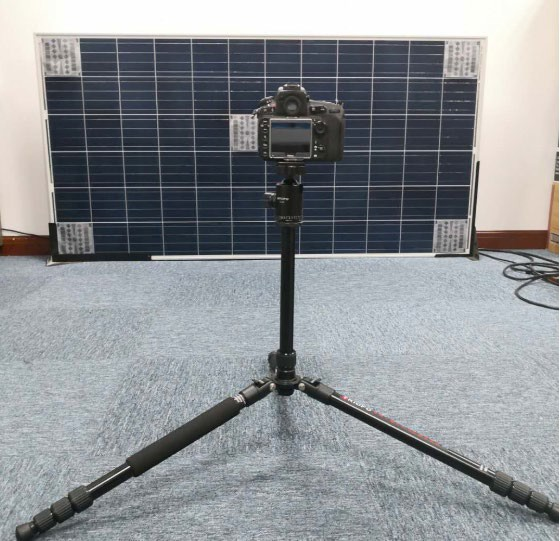

4. Actual Photos

Portable EL Tester, no need for manual focus, space-saving, and easy to use:

• Can be connected to a computer via USB cable.

• Can be connected to a computer via WIFI.

• Can be used on a tablet or smartphone.

This Portable EL Tester setup offers great convenience for technicians during EL testing operations on a Solar Panel Production Line. By utilizing high resolution cameras, it reduces detection errors and enhances image clarity.
