20-50Mwp Solar Panel Production Line

Solar Panel EVA/TPT Cutting Table

Model:YDD-CT

3150*1200*900mm

1. Aluminum alloy frame with Feeding shaft,can cut EVA and also TPT.

2.8mm glass working plat with 2M steel rule.

3.Flat working plat.

4.Adjusted screws in feet part.

5.Panels are compression plate,Graduated scale in plate for convenient cutting size.

6.Sliding bearing to chose EVA/TPT,Flexibility is good,here is positioning device and cut EVATPT at the same time.

Technical specifications:

Application:

Used to test the electrical performance of Mono-Si or Poly-si solar cell pieces and record the results in files.

Type specification: YHCT-A

Machine Feature:

• A grade spectrum
• A grade unevenness degree of irradiance
• Four-line measure, 14-bit 4-channel high speed synchronous acquisition card
• 10 parameters display and Measurement Parameter display in Tabulation and Graphic way
• Pneumatic and buffering contact
• Temperature automatically compensation
• Voice counts off and prompts, Counting prompt of flash
• 24hours Continuous work

Specifications :

Solar Cell Tester

1. Test Size: 200X200mm

2. 2Test rang:0W-16W

3. Package Measurement: 94X80X210 CM

4. Gross Weight: 158KG

Technical Parameter:

• Lamp Spectrum: In line with IEC60904-9 and JISC8933 ( A Grade)
• Light Intensity: 100mW/cm2 (continuous adjustable range 20-120W/cm2
• Light intensity non-uniformity: ≤ ± 3% A ≤ ± 2% AAA
• Instability degree of irradiation: ≤ ± 3% A ≤ ± 2% AAA
• Test result consistency: ≤ ± 0.1% A ≤ ± 0.05% AAA
• Test error of electrical properties: ≤ 1% A
• Single flash time: 10-30ms
• Effective test range: 200X200mm(0.1-16W)
• Measuring voltage: 0 - 0.8V (resolution 1mV)
• Measuring current: 0 - 20A (resolution 1mA)
• Test parameters: Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, RSH
• Power demand: 220V/50HZ/2KVA

Solar cell laser scribing machine

Model:YHC-30F

Other Requirements:

1.The entire equipment's electrical and gas usage must comply with national standards.

2.The equipment must have overload protection.

3.The equipment must have preventive measures for stability.

4.The equipment's floor space must be designed based on the actual site.

5.The equipment must have various abnormal alarms and display systems

Solar Cells Automatic Tabber Stringer

Operating Speed:Not less than 1600 pieces/hour Soldering Defect Rate:≤2%

Applicable Busbar Specifications: Traditional standard 1~6 busbars

Applicable Ribbon Specifications: Width 1.0-2.0mm,Thickness 0.1-0.16mm

Applicable Cell Size: 156mm,158mm,166mm,182mm cut cells

Maximum Cell String Length:Up to 650mm

Soldering Method:Infrared soldering

Power Supply:AC 220V 50/60Hz Single-phase 3-wire,Power:10KW Compressed Air:Pressure:≥0.5MPa,Flow:≥100L/min

Equipment Dimensions: Not less than

Length:2250mm*Width:1080mm*Height:2000mm

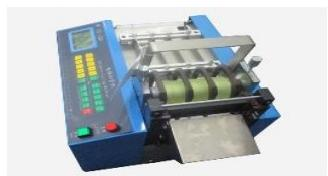

Ribbon cutting machine YS-100

Parameter

Solar Panel Welding Station

Model:YDD-WT

Solar Panel Welding Table and the Soldering Jig

1,Single heating plate:220×200×12mm Power 44W Voltage 220V

2,Stringing heating plate:200×1600×12mm Power 300W Voltage 220V

Stringing plate has two kinds:Punching knock of stainless steel and molding template

3,Stringing Pallet:2000*180*15mm,Aluminum profile and oxidation treatment

Soldering Iron

Temperature range 50℃-600℃

· Steel welding and polish,coating surface.

· All argon arc welding,Polish,good appearance.

Trolley Type 3-Solar stringer trolley Size:1600*800*1350mm

· Each side has 10 floor,total is 20 floor.

· Transfer cell box.

· Four universal wheel,two of them is brake,it is convenient to move.

· All argon arc welding,polish,good appearance.

Trolley Type 4-Turnover Vehicle for glass,pre-Framed,module. Size:1800*1000*1250mm

· steel welding,coating surface with non-slip rubber

· Four universal wheel two of them is brake,it is convenient to move.

· All argon arc welding,Polish,good appearance.

Trolley Type 4-Turnover Vehicle for to be laminated

Size:1100*1000*1450mm

· Steel pipe coating,ten floor.

· Cotton padded covering,not easy to break.

· Four universal wheel,two of themis brake,it is convenient to move.

· All argon arc welding,polish,good appearance.

Semi-automatic Laminator

Technical Parameters

Solar Panel Framing Machine

Application:Frame aluminum frame into module Power:220V

Air source:0.7-0.8Mpa,Air flow:5L/min

Min framing dimension:300×300×50(35)mm,

Max framing dimension:2100×1100×50(35)mm Framing speed:50second/piece

Trimming Table

Junction Box Installation Table

Size:1200*600*900

Solar Simulator

Application:

Mainly used in automatic test and result record of solar mono-crystalline silicon,poly-crystalline silicon solar cell

module and thin-film module.

Products Features:

1.Flash impulse continuous adjustable range 10-100ms

2.Four-line measurement;14-bit 4-channel high-speed synchronous acquisition card,8000 data collecting point;

3.10 parameters display;measured parameter display in tabulation and graphic way;

4.Irradiance automatically compensating;temperature automatically compensating;

5.Voice counts off and prompts of flash time;counting prompts of flash time

6.24 consecutive hours of work,working life of imports Xenon lamp is 300,000 times of flash Technical Data:

Tabbing and Stringing Jig(with Heater)

Size:2000*180*10mm

Aluminum alloy material with surface oxidation treatment Precision within+/-0.05mm.

Storage Boxes

Size:2000*180*15mm

Aluminum alloy material for Cell strip transfer

Optional Machines

Solar Panel EL tester

Model:YHEL-2400

Application:

Defects of solar cell material(debris,cracked,broken gate,pollution);

Defects from the welding process(weld,desoldering);

Mix different levels cell

Technical Features

Its highly sensitive infrared camera can defective solar module, which

can help users know the solar module and panel from defects in material or workmanship defects

The equipment can be applied before and after lamination process, defect

detector is an important and effective process monitoring and testing equipment

It consists of a set of specialized optical imaging systems and high-sensitivity camera module, which is available to user in the preparation process, product quality testing
